2003 Casagrande-Huette HBR 503

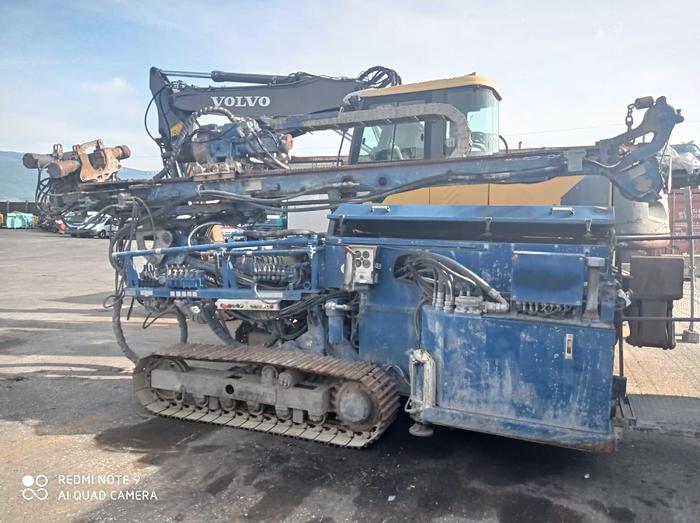

N°1 drilling rig, make Huette, model HBR 503

Year of manufacture: 2003

CE certified

Class weight: 7 tons

Diesel engine Deutz, power 120 hp

Feed travel fitted for 3 mt long drill rods

Max pull back force: 6 tons

Rotary head:

Option 1: krupp HB30 with drifter and under the rotary swivel

Option 2: high torque rotary head; max torque 700 kgm, 2 speeds. max speed up to 110 rpm

Double clamp with max passage 250 mm

Winch

Drilling control panel on pivoting arm

Very good cinematism

Price on application
