Trivellatrice Puntel PX 600
Non disponibile
Trivellatrice Puntel PX 600
Descrizione

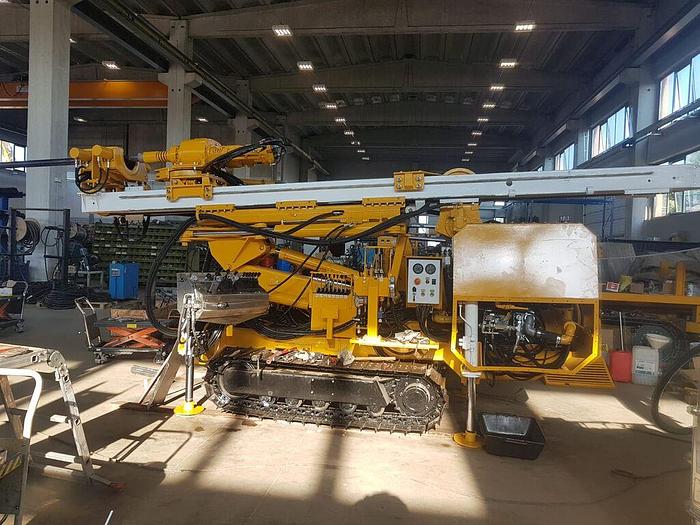

N°1 drilling rig, make Puntel, model PX 600, crawler mounted.
Diesel engine make Deutz, model F5L 912, 5-cylinder, power 80 hp
Feed travel fitted for 3 mt long drill rods - effective feed-travel 3600 mm
Max pull back force: 6 tons
Rotary head with max torque 820 kgm, 2 speeds.
Double clamp with max passage 260 mm
Hydraulic winch
Foam pump: max delivery 40 lt/min, pressure 50 bar
Drilling control panel on articulated arm
Positioning control panel on board
Excellent general conditions.
Class weight: 8 tons
For micro-piles, anchors, soil investigation jobs and shallow water wells
Visible at our workshop
Price on request.
Specifiche
Condizione | Usato |
Numero di magazzino | YG15192 |
Tipo | trivellatrice |
