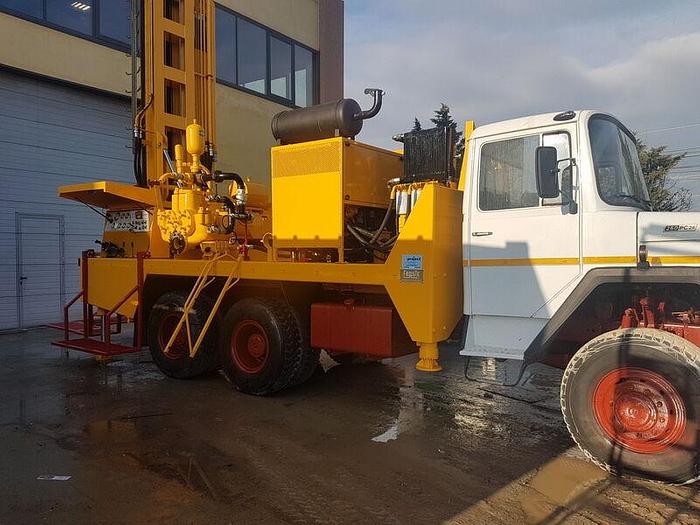

Drilling machine FRASTE FS400 on Magirus

N°1 drilling rig, make Fraste, model FS 400 installed on Magirus 3 axles 6x6 Deck engine IVECO -Aifo, 6-cylinder, water cooled, power 260 hp mat fitted for 6 mt long drill rods max pull back force: 25 ton Rotary head with max torque 1600 kgm, 2 speed. Variable speed control from 0 to max within each selected speed - Closed-loop hydraulic circuit for rotation Rotary with frontal tilting movement Rotary with lateral sliding movement to free the hole center Single clamp with max passage up to 600 mm Mechanical rod centralizers Unscrewing hydraulic jack Hydraulic winch with max pull line 6000 kg@ 1st layer Duplex piston mud pump, make Ballerini, model D1C (7'' bore x 8'' stroke) Max delivery 1620 lt/1', pressure 15-18 bar Used, overhauled and repainted Price on request
